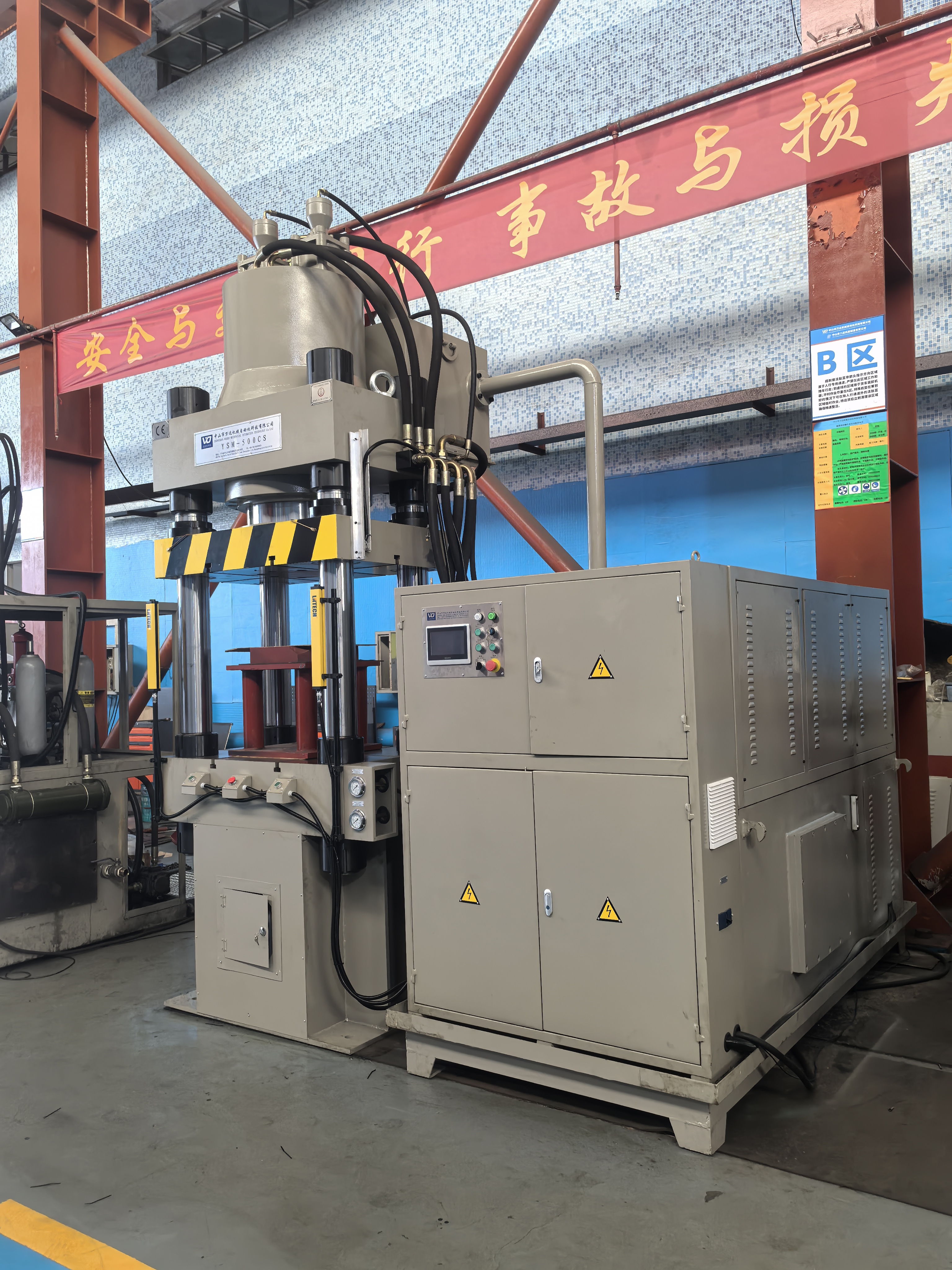

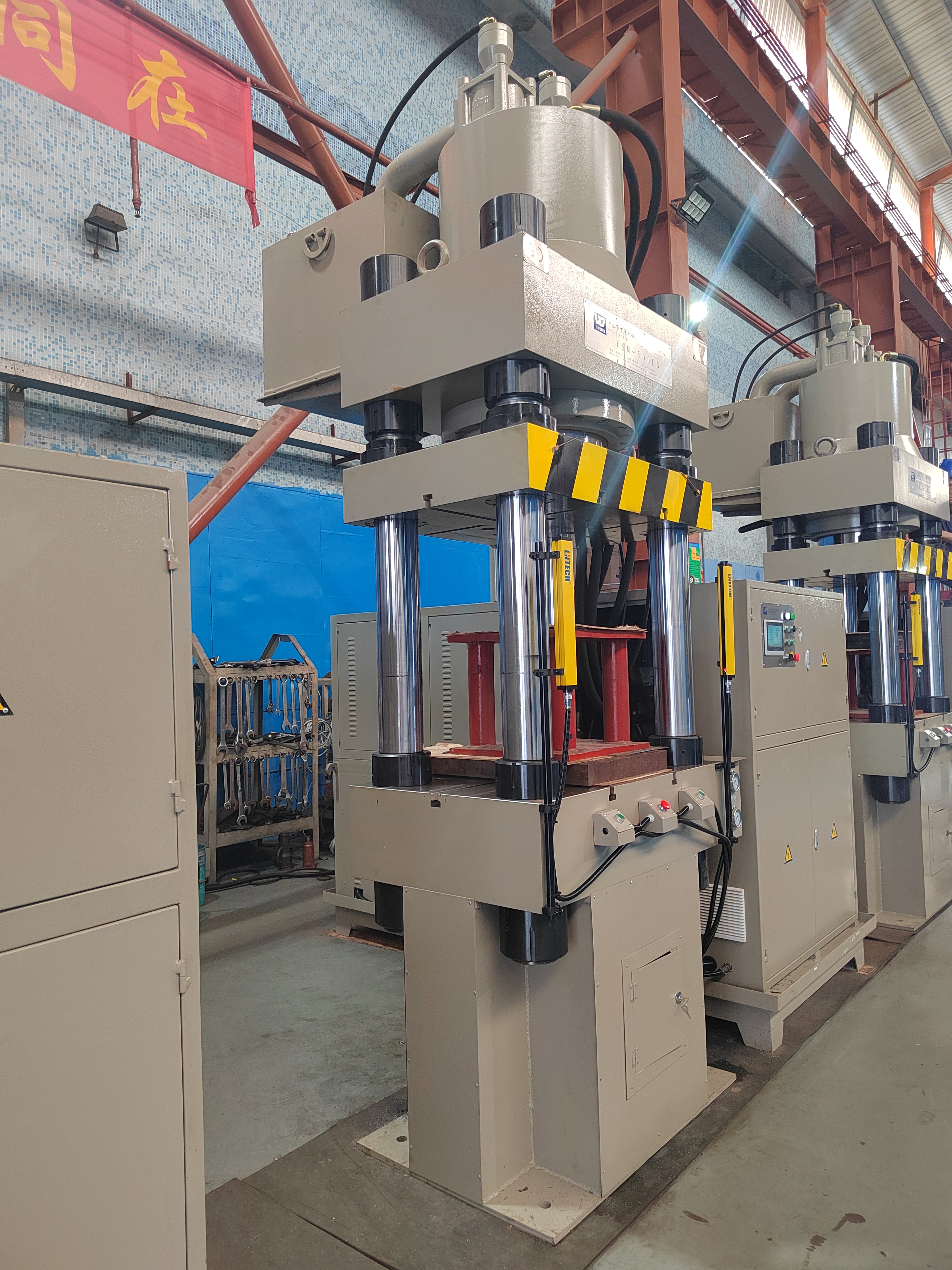

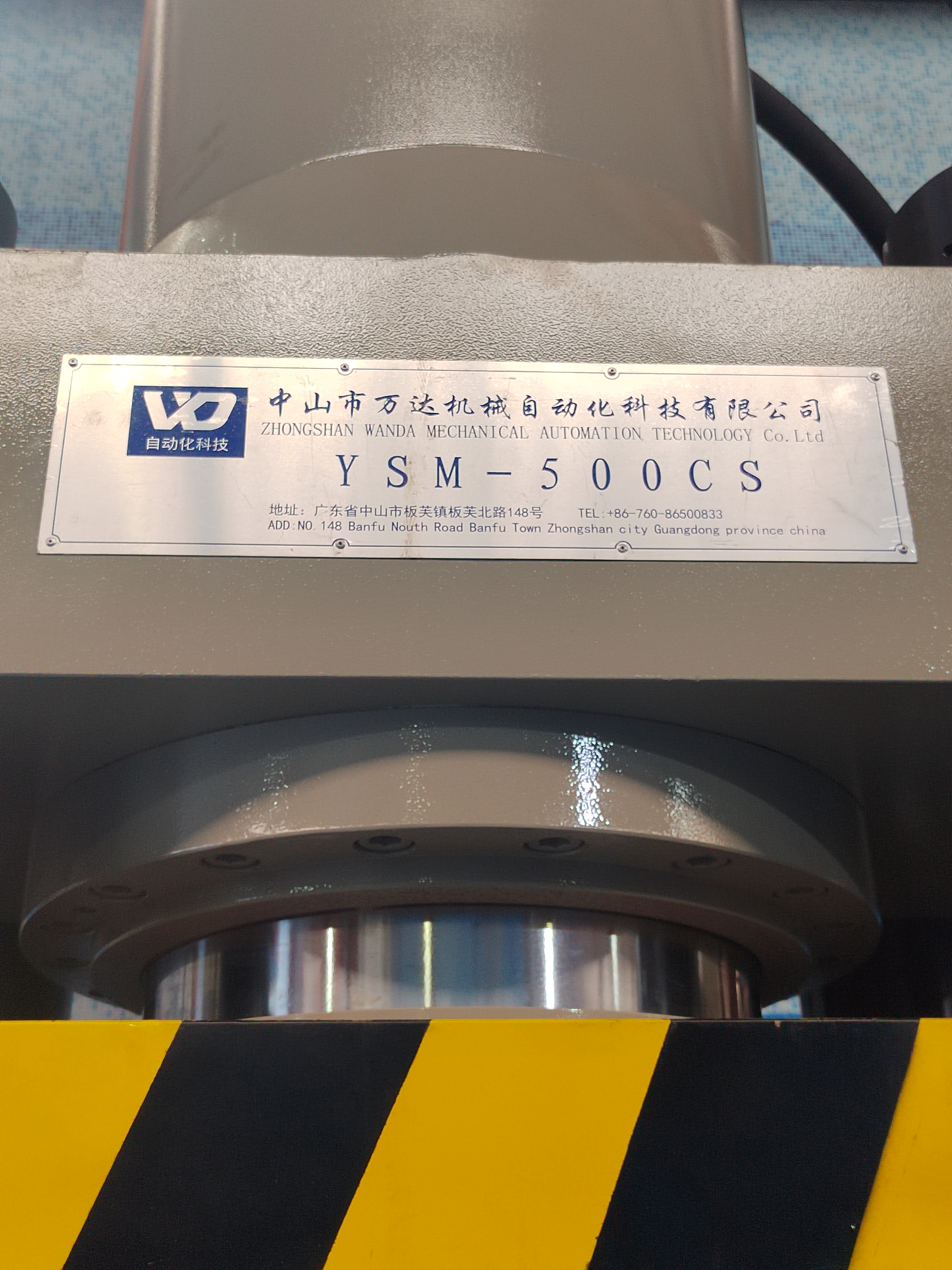

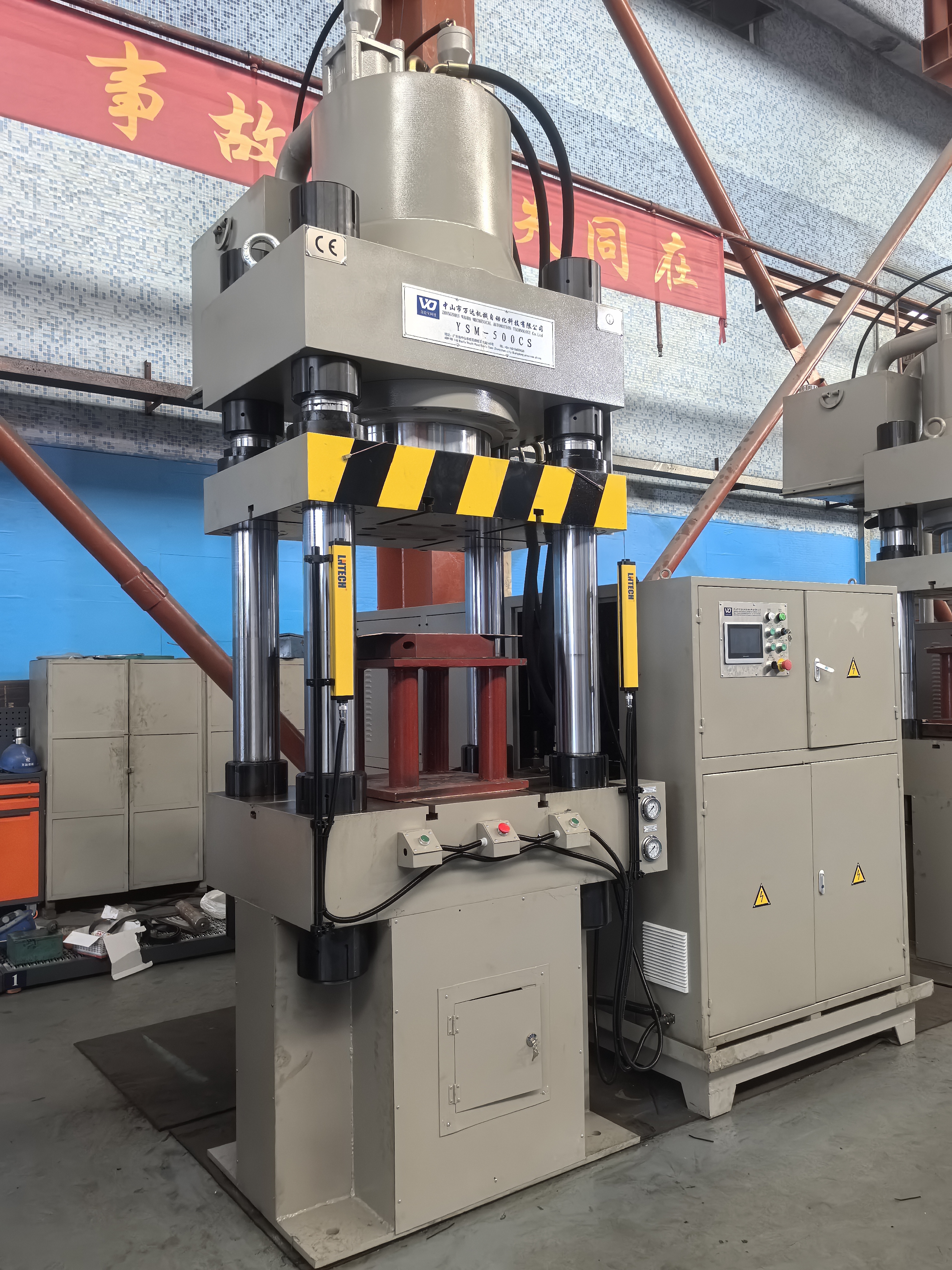

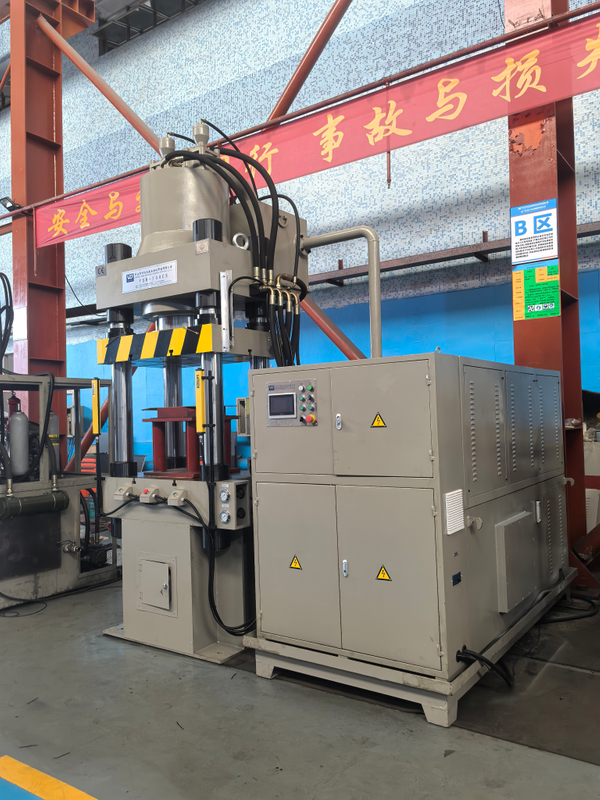

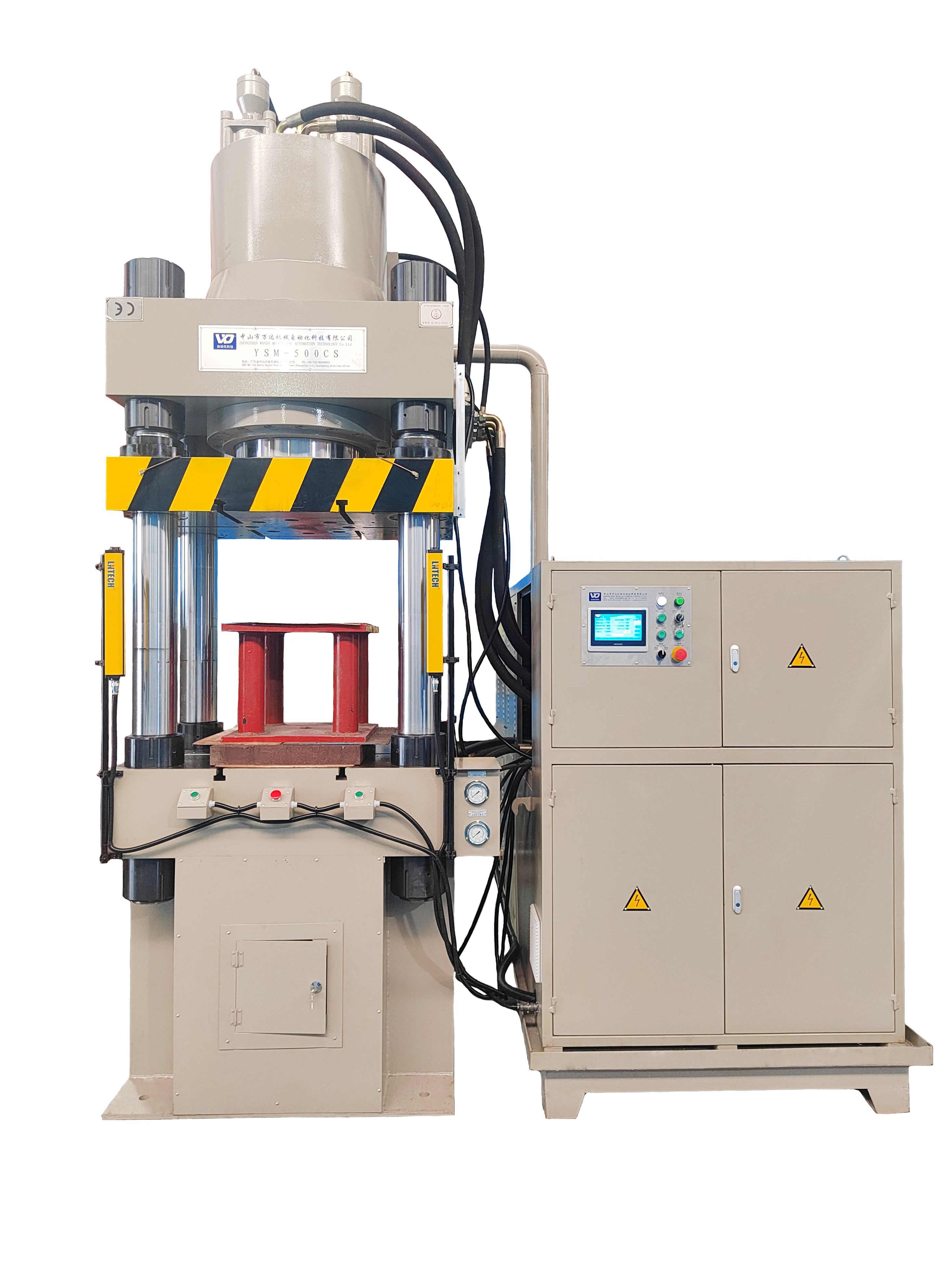

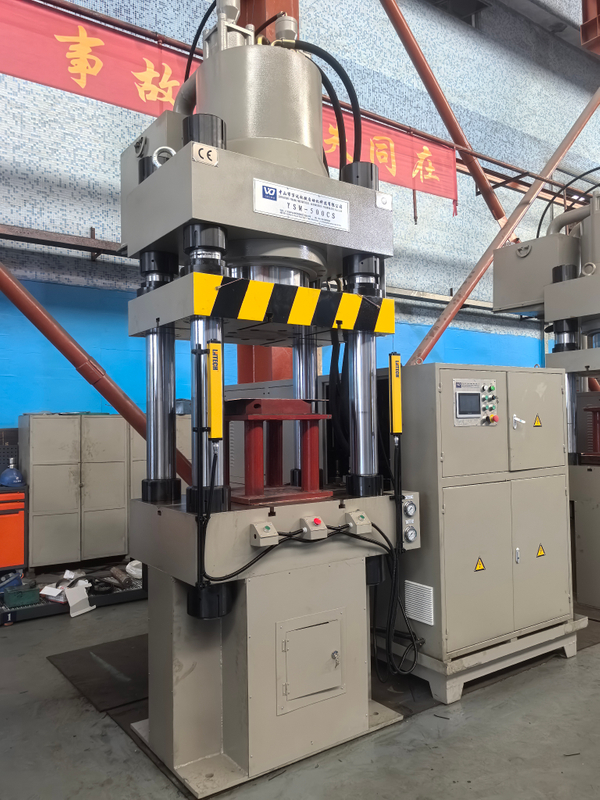

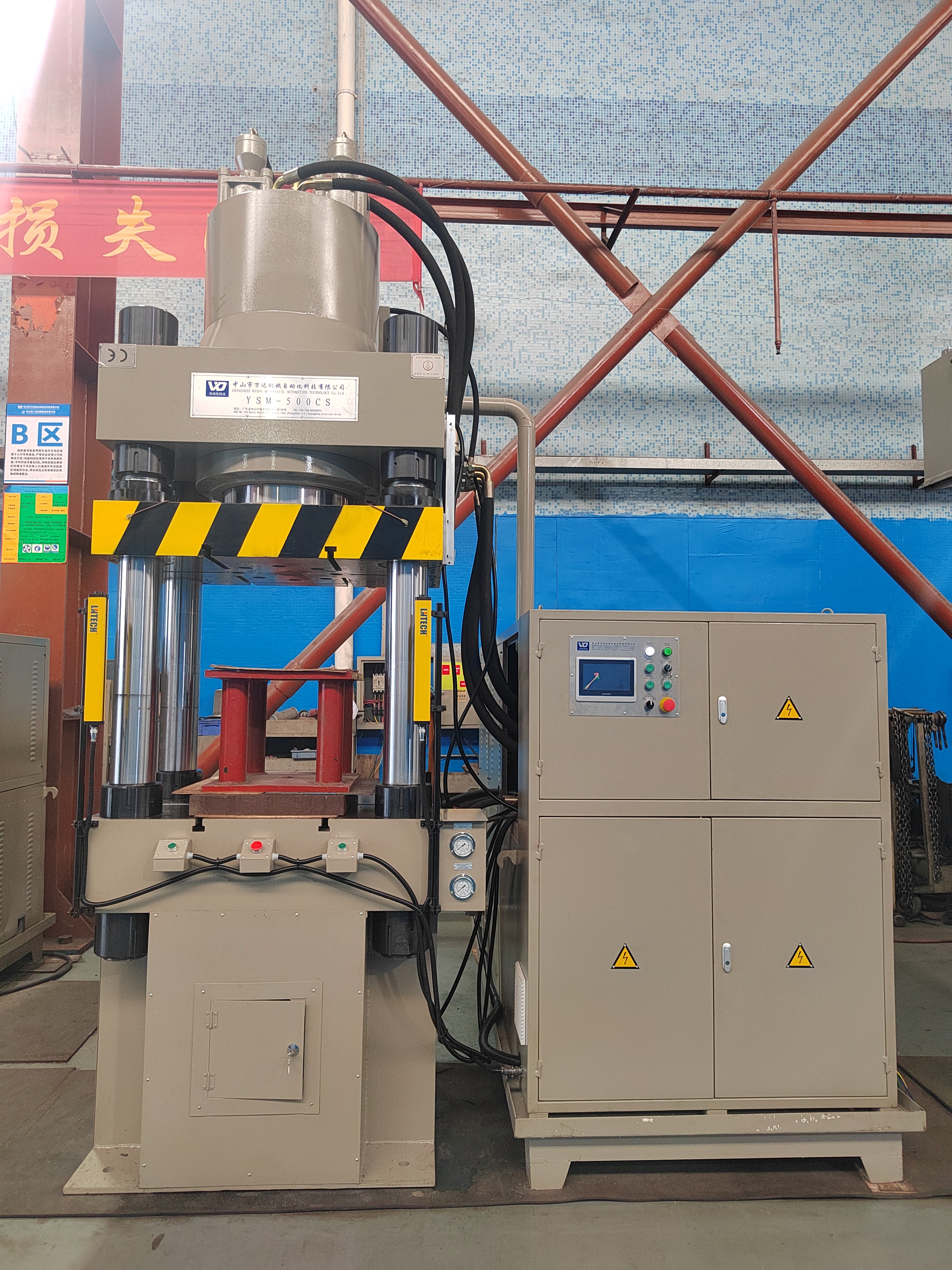

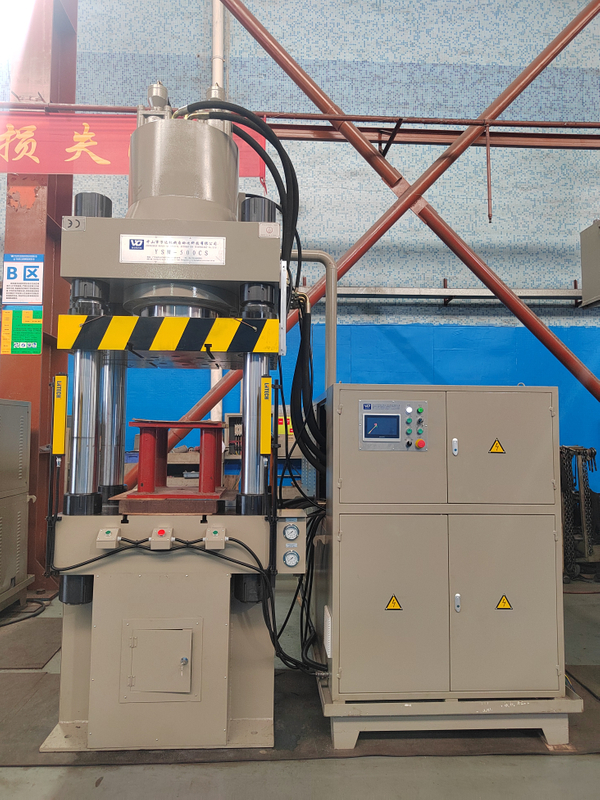

YSM-500CS
萬達
產品描述
典型工藝動作：啟動電機—主缸快速下行—主缸慢速壓制—主缸保壓（保壓時間1-60秒可調）—下頂料缸頂出—下料缸退回（電子尺控制）,，完成一個工作循化。

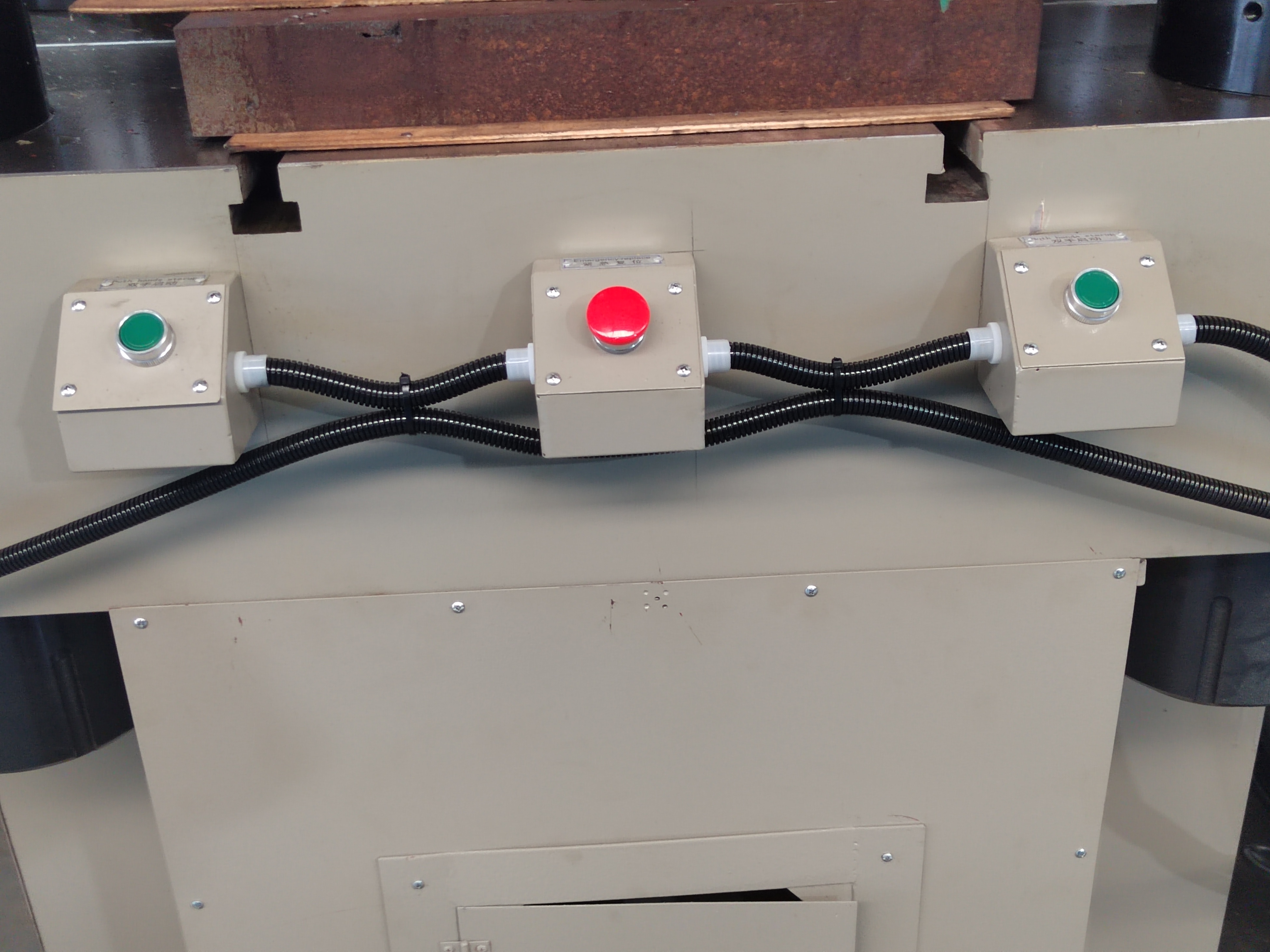

手動可單獨控制,。
Typical process actions: Start the motor - fast descent of the main cylinder - slow pressing of the main cylinder - pressure holding of the main cylinder (pressure holding time adjustable from 1-60 seconds) - ejection of the lower top material cylinder - retraction of the lower material cylinder (controlled by an electronic ruler), completing a work cycle.
Manual can be controlled separately.
二,、機器參數和工藝動作:Machine parameters and process actions
序號NO. | 項目Item | 單位Unit | YSM-500CS參數 Spec. | |
1 | 公稱力 Nominal force | 主缸master cylinder | KN | 5000（可調）(Adjustable) |
底缸bottom cylinder | KN | 500（可調）(Adjustable) | ||
2 | 行程 Max. Stroke | 主缸master cylinder | mm | 400（可調）(Adjustable) |
底缸bottom cylinder | mm | 200（可調）(Adjustable) | ||
3 | 開口高度Maximum opening height | mm | 850 | |
4 | 主缸速度Master cylinder speed | 快速上行Fast upward movement | mm/s | 220（可調）(Adjustable) |
慢速壓制Slow pressing | mm/s | 16（可調）(Adjustable) | ||
回程return | mm/s | 200（可調）(Adjustable) | ||
5 | 工作臺有效尺寸 Effective size of workbench | 左右（柱內） L.R(inside the column) | mm | 750 |
前后（邊沿）F.B(edge) | mm | 750 | ||
6 | 液體工作壓力 Maximum working pressure of liquid | MPa | 25 | |
7 | 油泵伺服電機功率 Power of oil pump servo motor | KW | 49 | |
8 | 工作臺上平面距地面高度The height of the flat surface of the workbench from the ground | mm | 1130 | |
9 | 滑塊空載重復位移精度 Sliding block no-load repeated displacement accuracy | ±0.02mm | ||
10 | 工作臺與滑塊平行度 Parallelism between workbench and slider | 小于0.20mm Less than 0.20mm | ||
